EndType

Del.» type TEndType = (etPolygon, etJoined, etSquare, etRound, etButt);

C++ » enum EndType {Polygon, Joined, Square, Round, Butt};

C# » public enum EndType {Polygon, Joined, Square, Round, Butt};

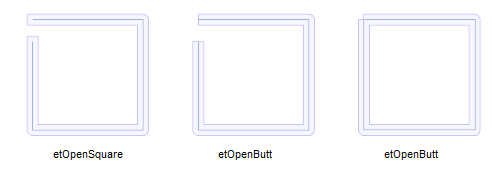

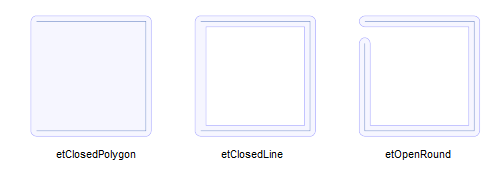

The EndType enumerator has 5 values:

Polygon: Ends are joined using the JoinType value and the path treated as a polygon
Joined: Ends are joined using the JoinType value and the path treated as a polyline
Square: Ends are squared off and extended delta units
Round: Ends are rounded off and extended delta units
Butt: Ends are squared off with no extension.

Note: With Polygon and Joined end types, the path closure will be the same regardless of whether or not the first and last vertices in the path match.

EndType
